M1D

VEHICLE SPECIFICATIONS

Colors: Slate

PERFORMANCE
Top Speed: Class 2 20 mph

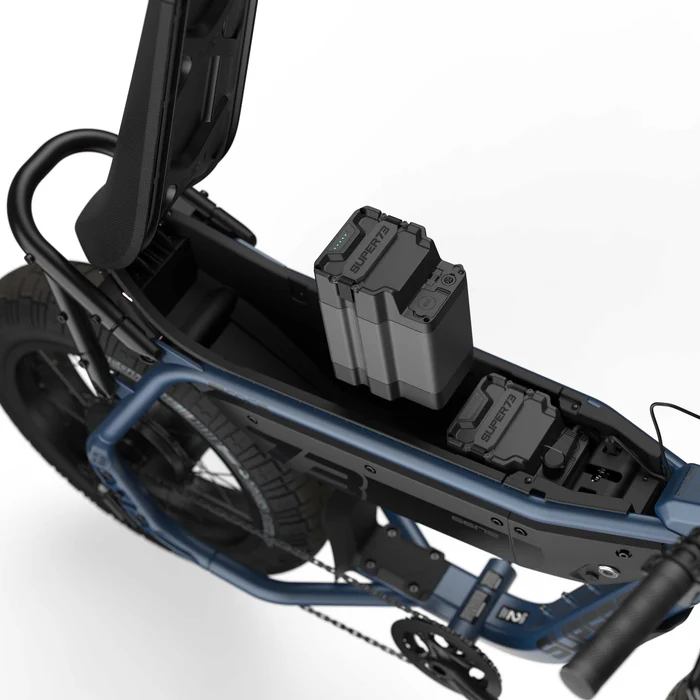

Range: Single 520Wh Battery Range 20 miles*; Dual 520Wh battery Range 40 miles**
*20+ miles of range at 20 mph under class-2 throttle-only operation
**40+ miles of range at 20 mph under class-2 throttle-only operation, Modular secondary battery sold separately
Charge Time: 5-6 hours

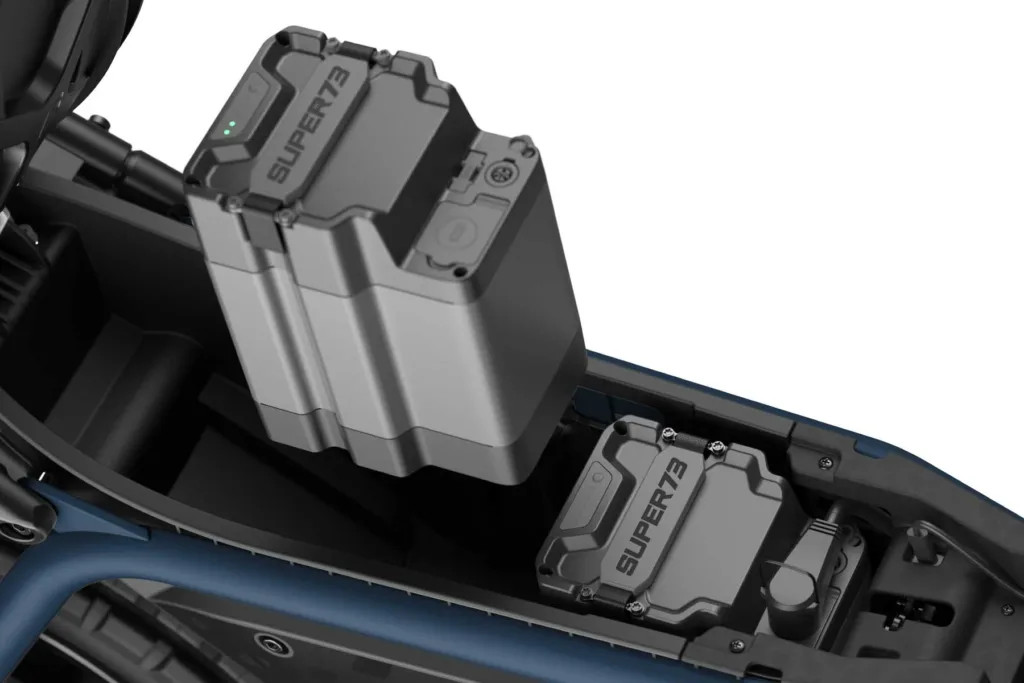

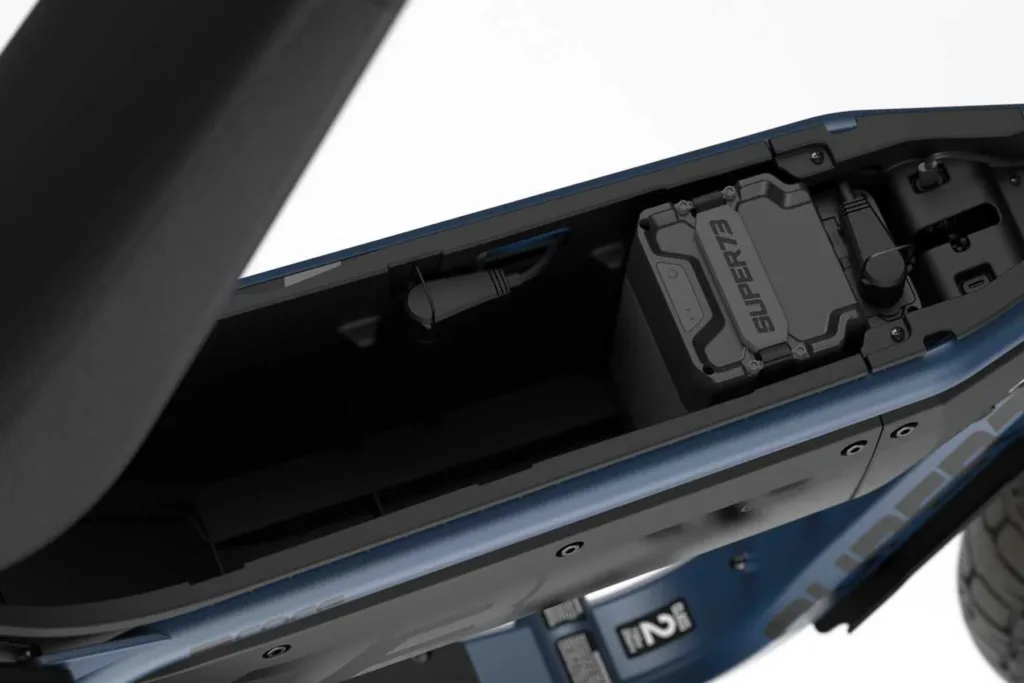

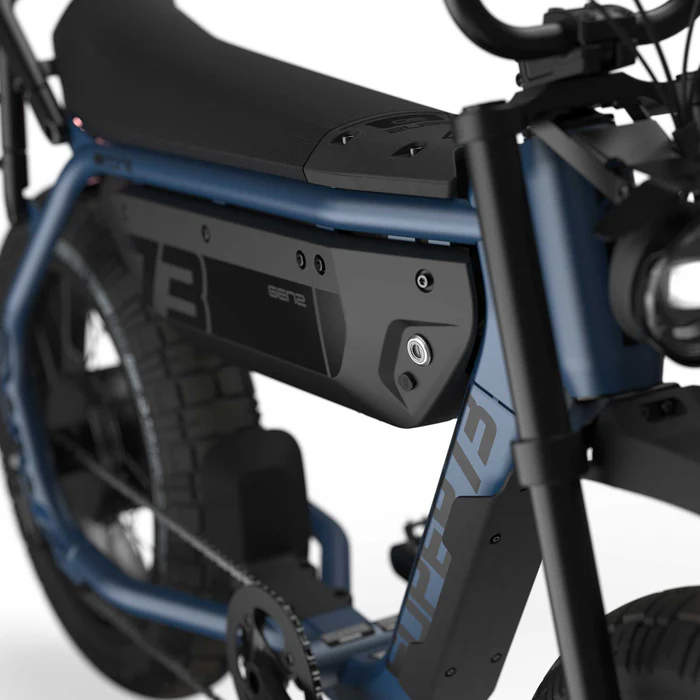

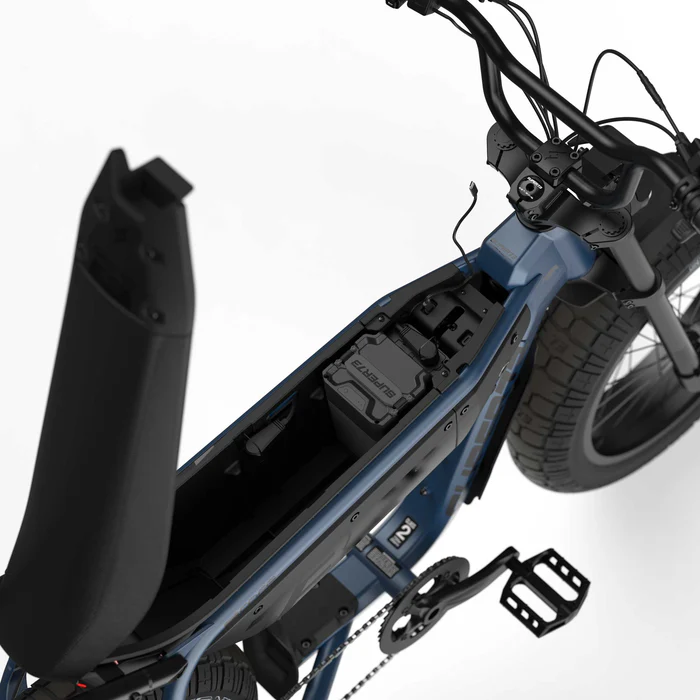

Battery: 520Wh (52V 10Ah) UL2271 Compliant

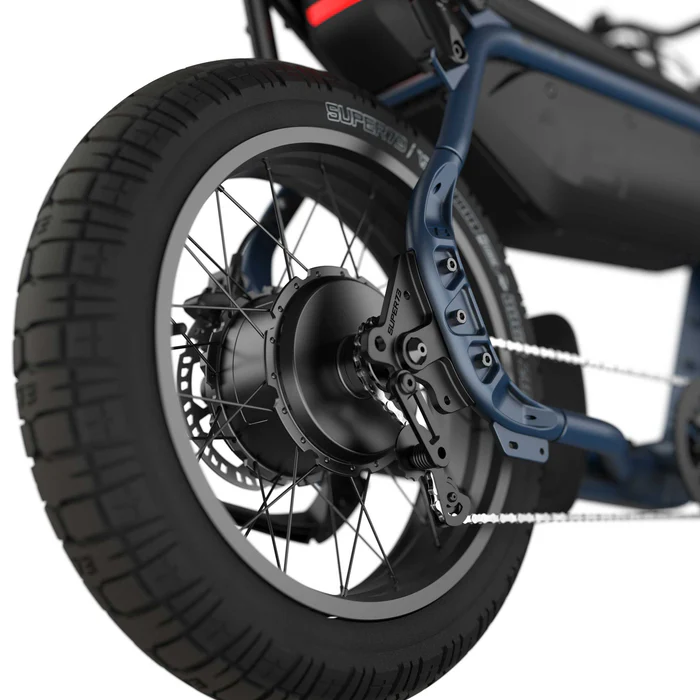

Motor: 500w nominal

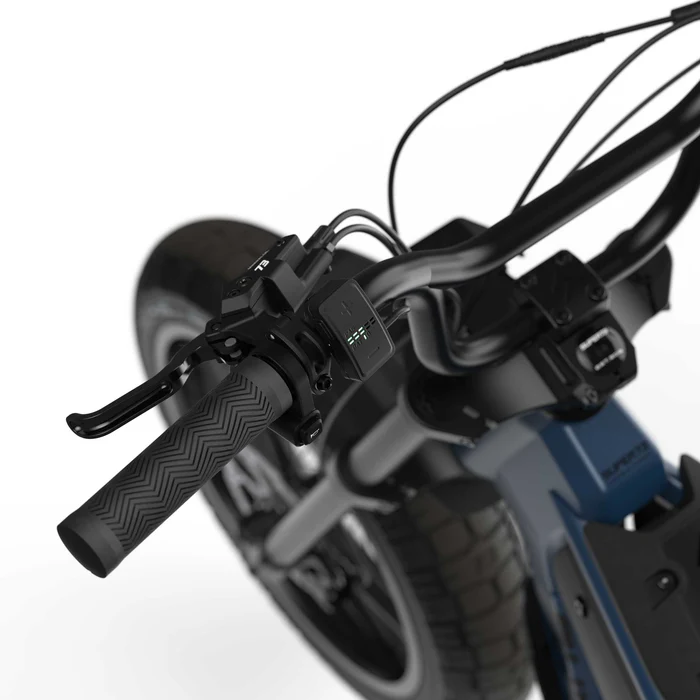

Throttle: Thumb Throttle
Gearing & Rear Derailleur: Single Speed

DIMENSIONS
Vehicle Weight: 88 lbs
Length x Width x Height: 66″ x 28.5″ x 41″
Rider Weight Limit: 250 lbs
Recommended Rider Height: 5’2″- 6’2″
Seat Height: 30″

FRAMESET

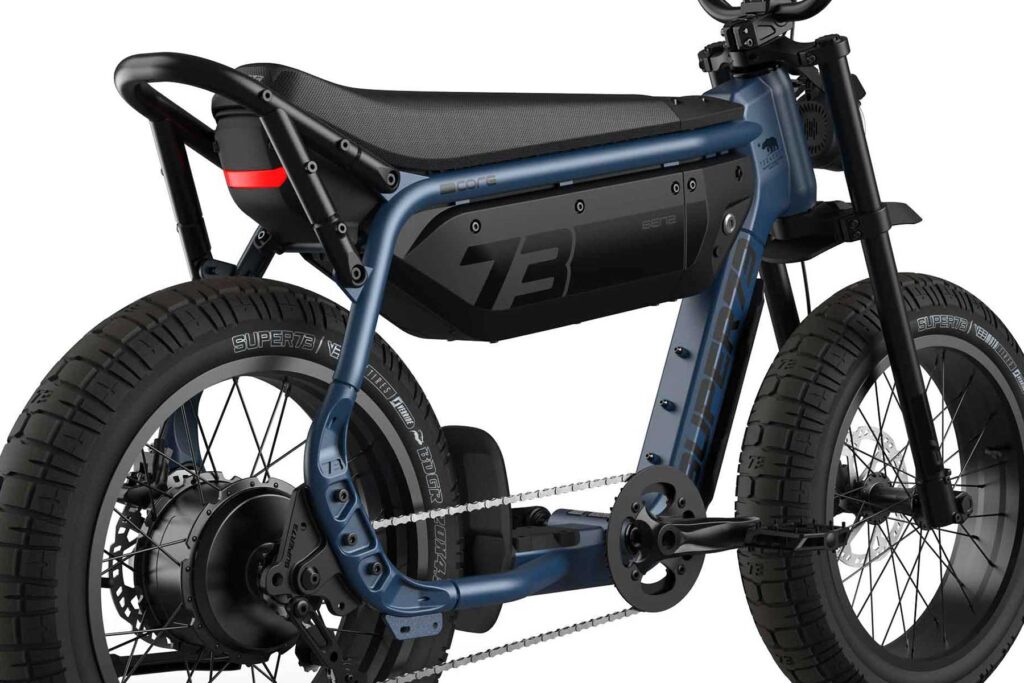

Frame: Aluminum
Suspension (if applicable): Rigid

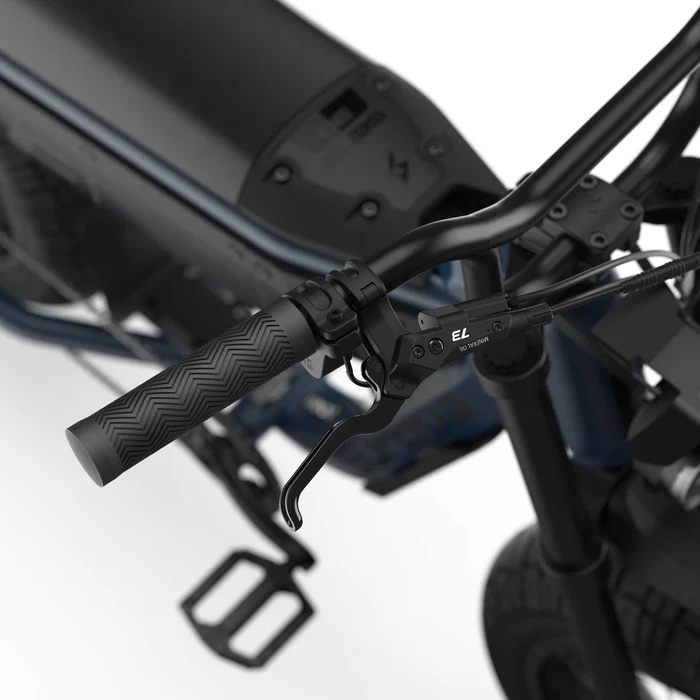

Brakes: SUPER73, 2 Piston, Hydraulic
Tires: BDGR 4.5″ Front, 5″ Rear
Inner Tubes: 20″ x 4.5″

LIGHTS & HORN

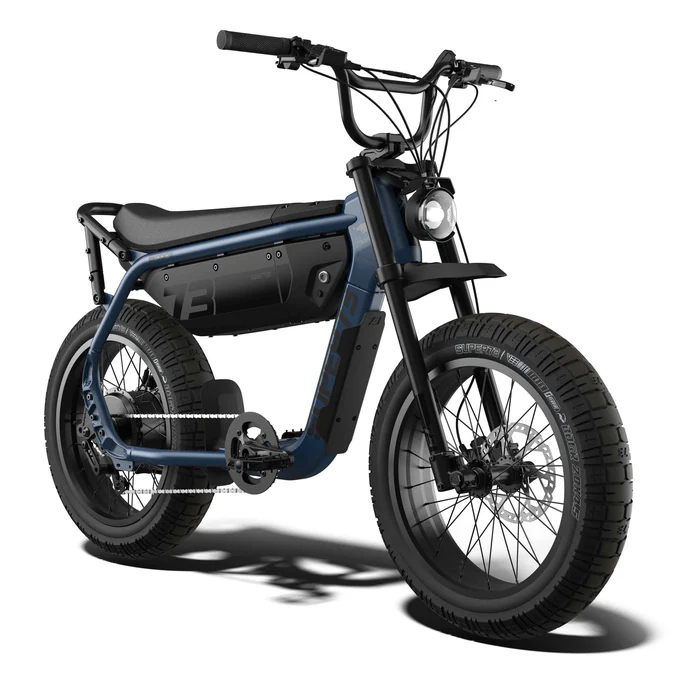

Headlight: LED

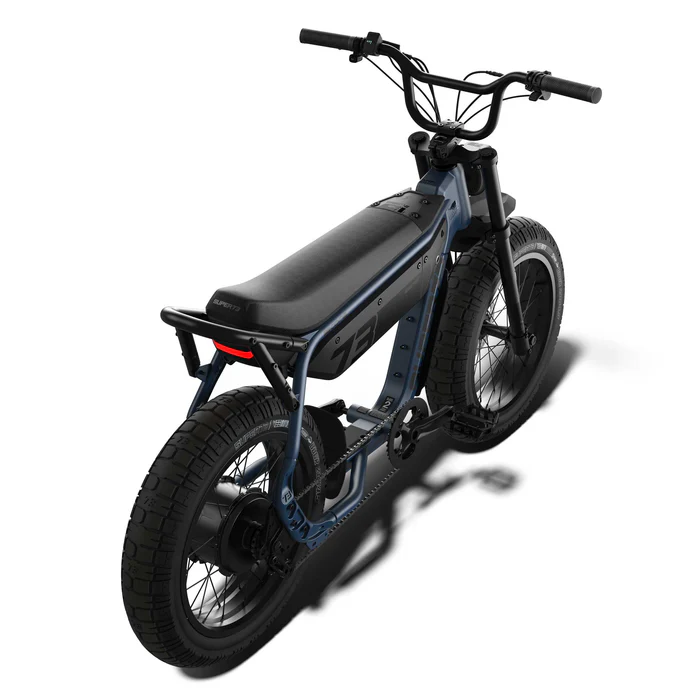

Tail Light: LED
Horn: Yes
