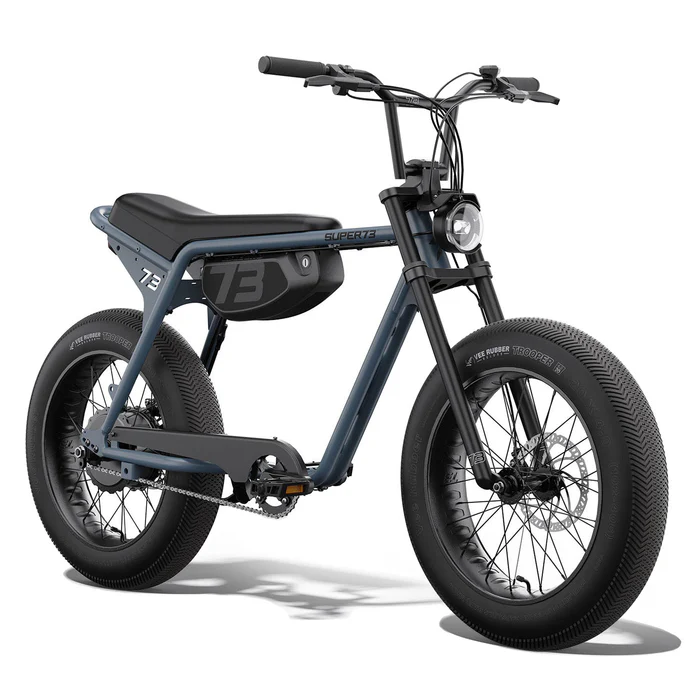

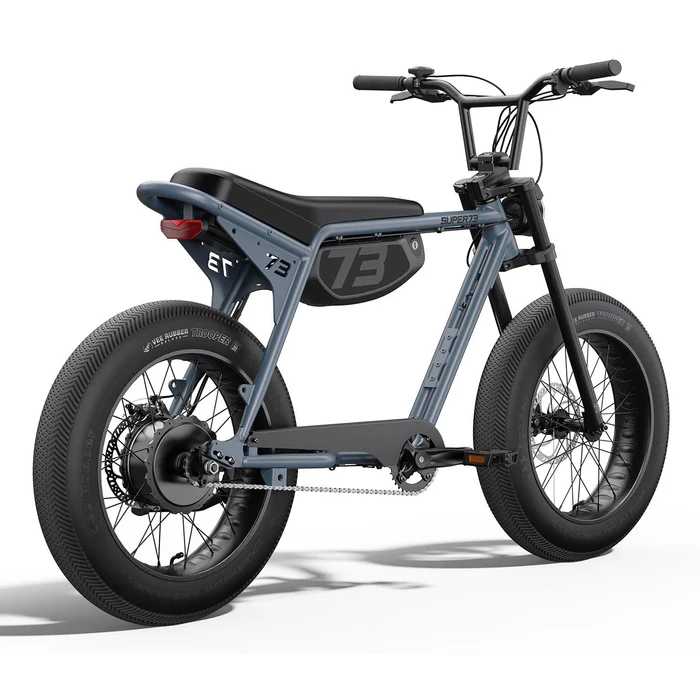

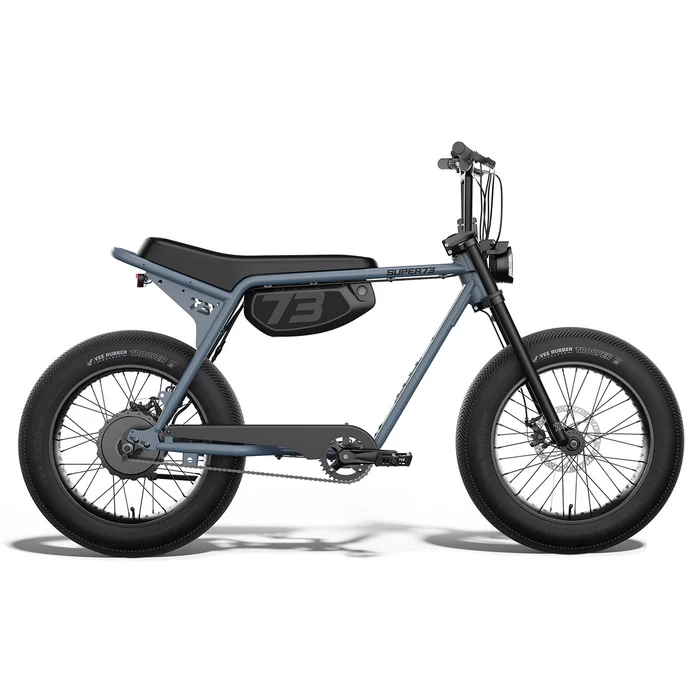

ZX CORE Legacy Series

Color: Metallic Aluminum

VEHICLE SPECIFICATIONS

PERFORMANCE
Top Speed: 20 mph
Range: 25-35 miles
Charge Time: 5 hours
Battery: 480Wh (48V 10Ah) UL2271 Compliant
Motor: 500w nominal
Throttle: Thumb Throttle
Gearing & Rear Derailleur: Single Speed

DIMENSIONS
Vehicle Weight: 62 lbs
Length x Width x Height: 68″ x 27.5″ x 42″
Rider Weight Limit: 325 lbs
Recommended Rider Height: 5’1″-6’8″
Seat Height: 31″

FRAMESET
Frame: Aluminum
Suspension (if applicable): Rigid
Brakes: Tektro/ 2 Piston/ Mechanical
Tires: VEE LZRD/4.5″ Front/5″ Rear
Inner Tubes: 20″ x 4.5″

LIGHTS & HORN
Head Light: LED
Tail Light: LED
Horn: No
