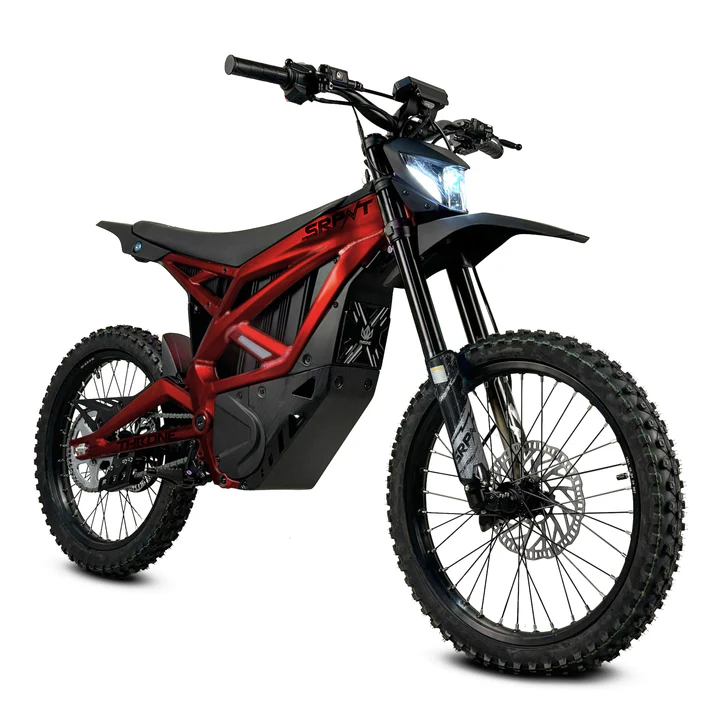

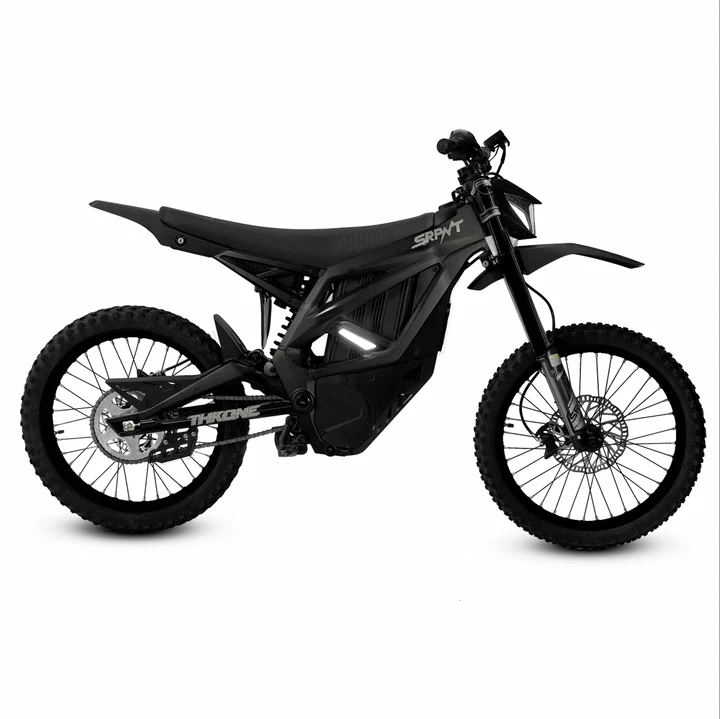

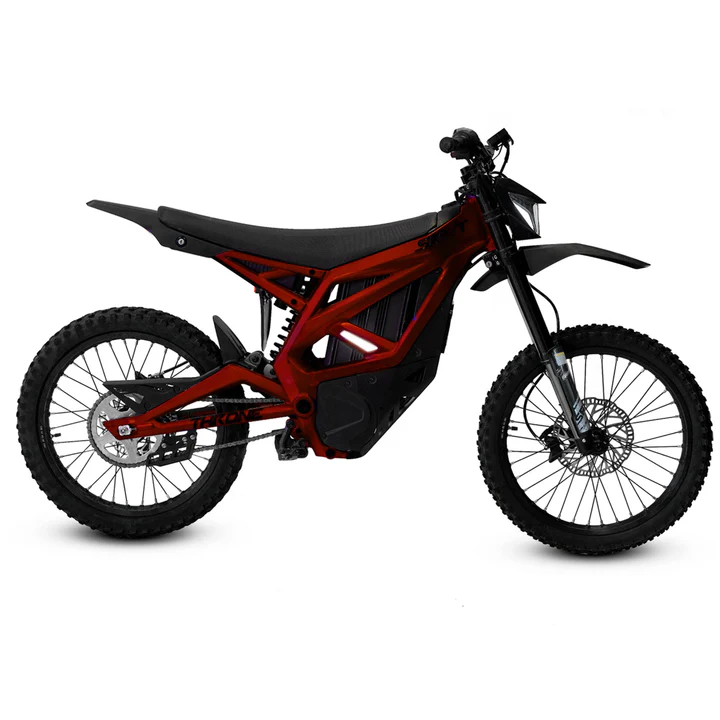

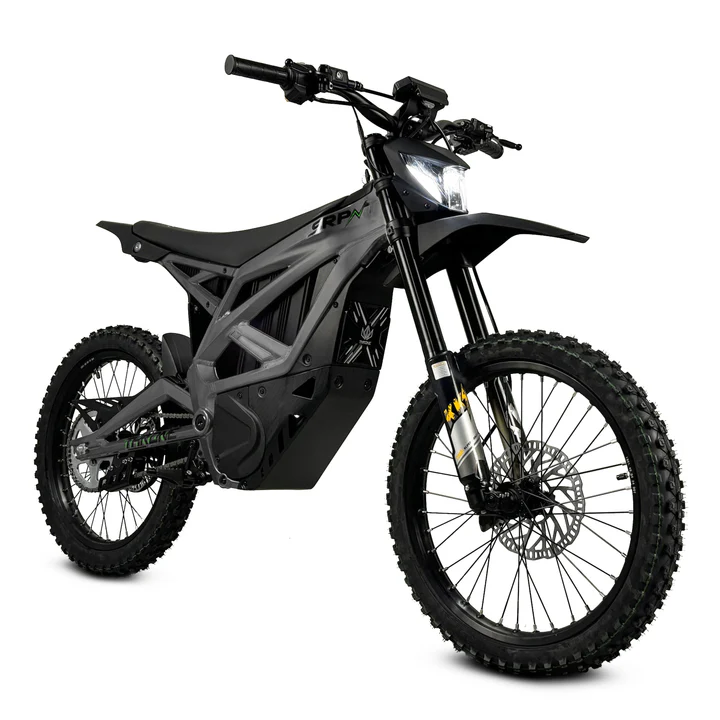

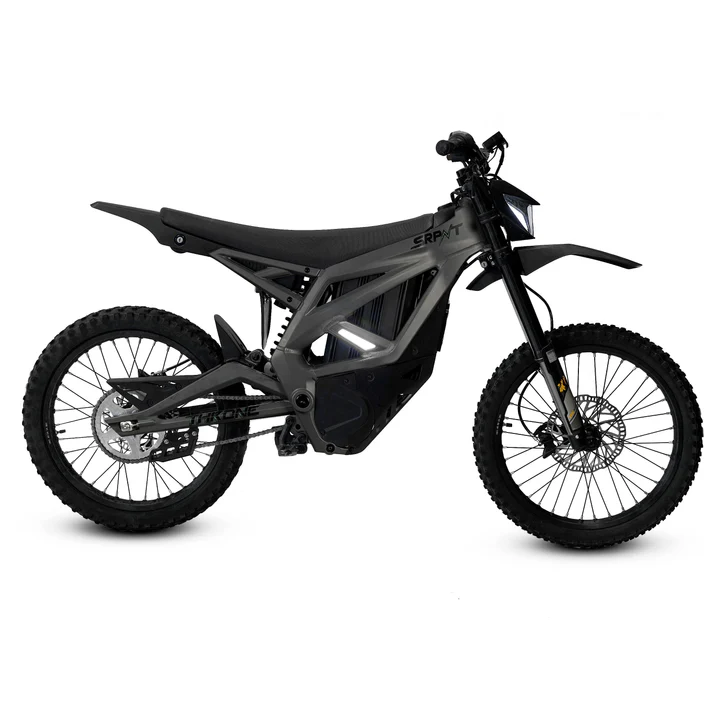

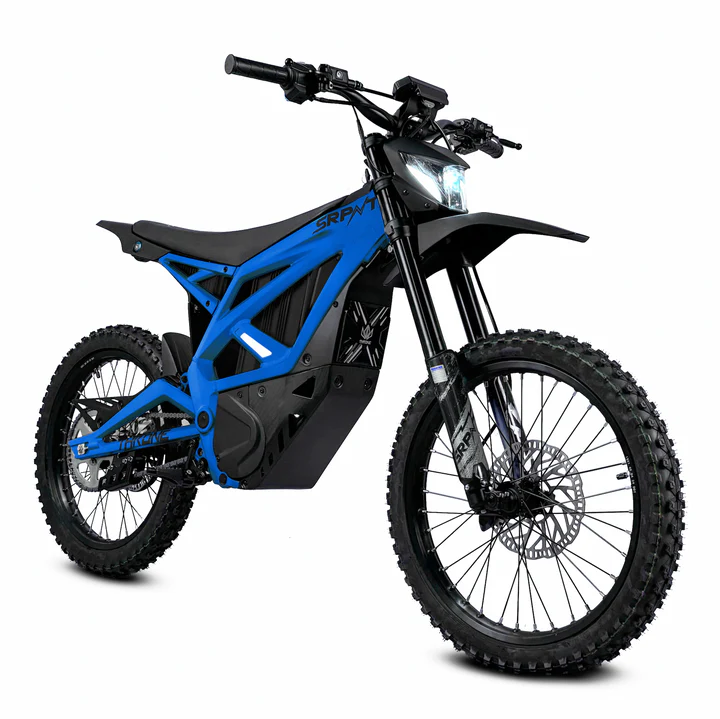

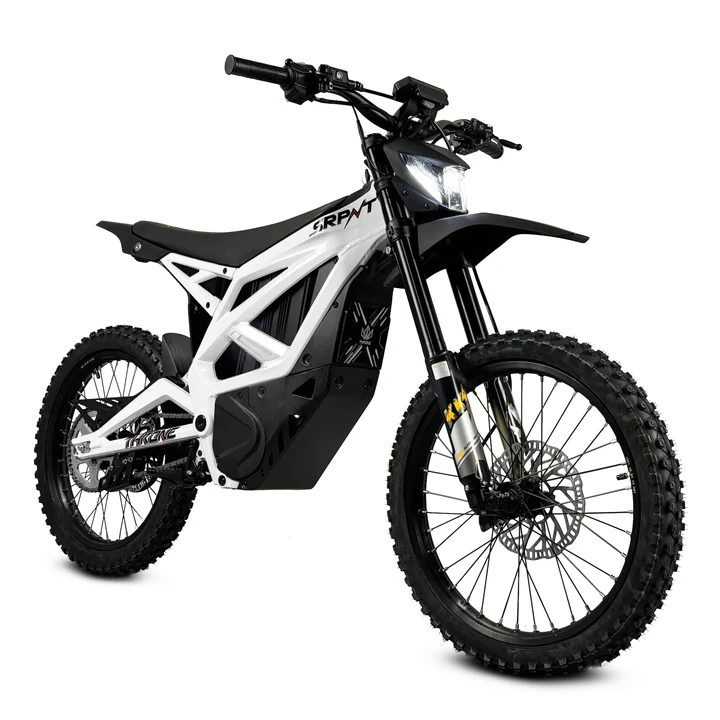

Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you’re navigating rugged terrain or enjoying off-road trails, the X3 e-DIRT BIKE delivers unmatched performance and excitement. New Industry levels!
However, please note that while this bike offers unparalleled excitement, it’s important to remember that it’s not street-legal. Prepare to elevate your off-road experience like never before with the X3 e-DIRT BIKE.
MOTOR
Motor Type: PMSM
Mounting Position: Mid
Weight/Motor External Diameter: 9.55 kg/ 155 mm
Motor Axial Length: 130 mm
Cooling Method: Air Cooled
CONTROLLER
Controller Type: FOC
Dimensions: 160 mm x 142 mm x 79 mm
Power Modes: Eco, High and Sport
MOTOR POWER SYSTEM
Rated Voltage: 72v (DC)
Motor Shaft Output Torque@ 1,000 RPM: 460 Nm
Rated Rotation Speed: 5400 rpm
Gear Ratio: 13:51
Transmission: Motorcycle Chain & 428 Drive Chain
ELECTRICAL COMPONENTS
Battery: 72v 40ah Lithium Battery
Battery Life Time: 500 Cycles
Battery Charge Level: Integrated Battery LCD Display
Charger: 9A
Charging Time: 3.5 Hours
USB Connection: Type C

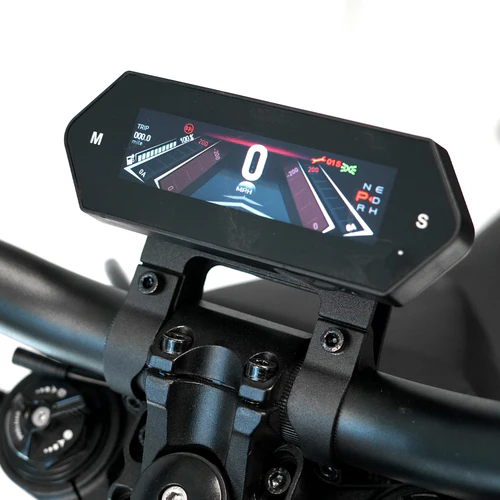

Speedometer: TFT
Headlight & Rear Light: Yes
FRAME DETAILS

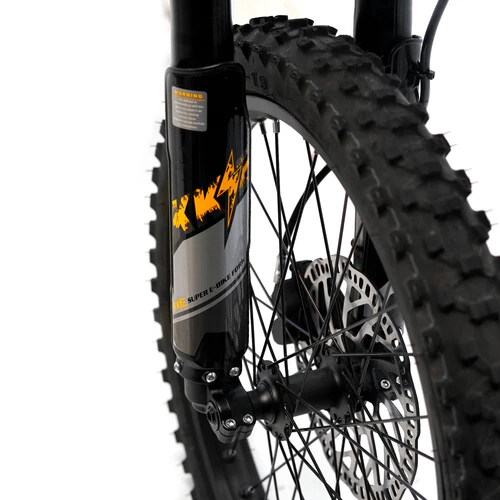

Front Suspension: Inverted Suspension Fork with 200 mm Travel
Rear Shock Absorber: KKE Suspension Link System
Wheel Type & Size: Front/Rear- 1.4 – 19, 1.6 – 19 Alloy Hubs
DIMENSIONS
Ground Clearance: 270 mm
Wheelbase: 1250 mm
Seat Height: 85 cm
Vehicle Dimensions: 1880 mm x 805 mm x 1130 mm
DRIVE
Top Speed: 90 km/h (60 mph)
Range: Apx. 40-80 Miles
Net Weight: 73 kg / 161 lbs
Rear Sprocket: 51T
Side Stand: Yes with Kill Switch
Battery Usage: 600 Uses
Carry Capacity: 320 lbs
NOTE: RECOMMENDED TO CHANGE OIL EVERY 1500KM GL-4 85w90
